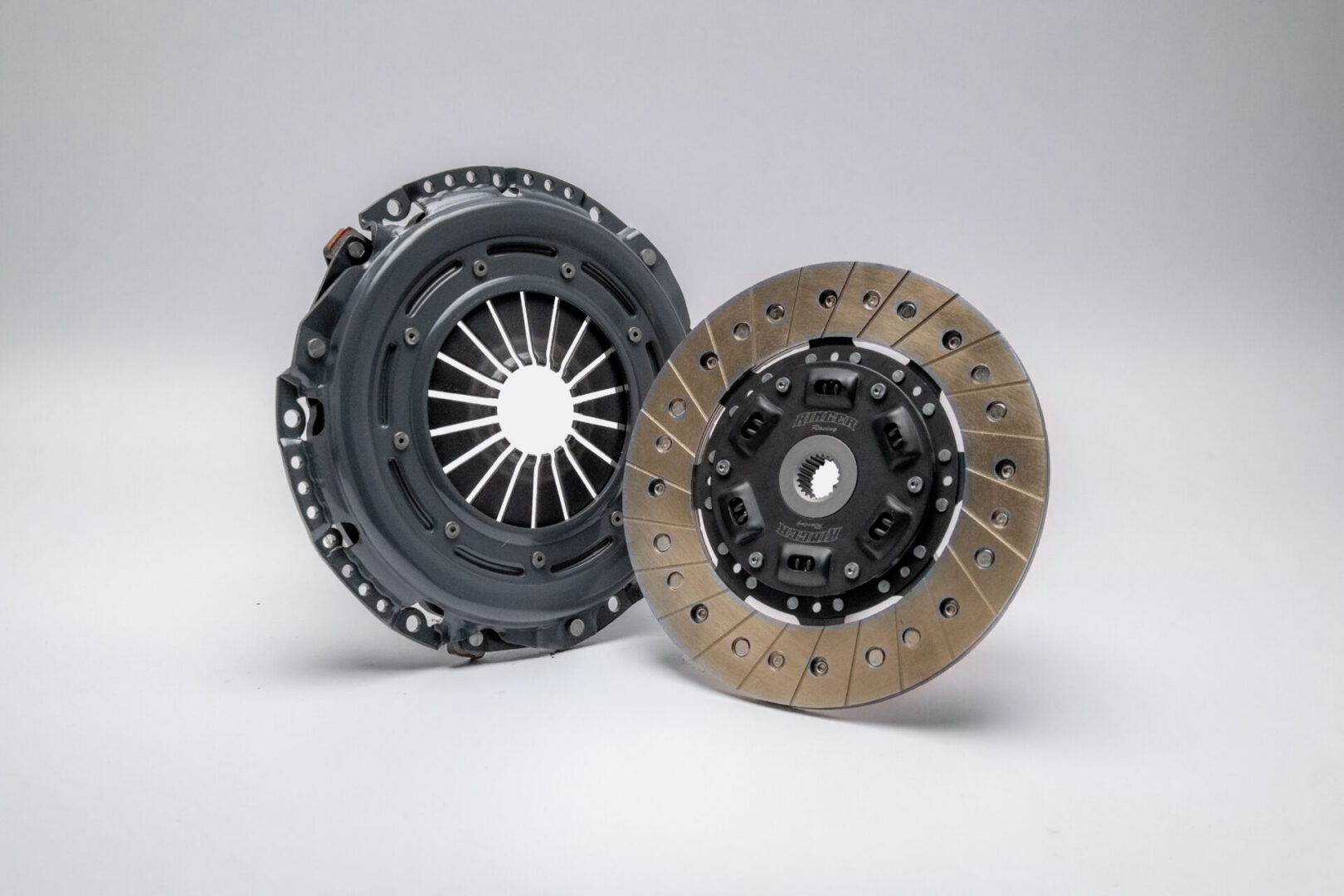

Ringer Racing 240mm Clutch kit – A4/Passat 1.8t

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing



Kit includes:

• Ringer Racing Clutch kit
• Throw-out Bearing
• Alignment tool

Replacement Clutch Kit for the Clutch Masters FW-240-SF flywheel, can also be used with the Spec 240mm A4/Passat 1.8t flywheel. For RA4 flywheel you must order the S4 2.7t version of this kit since the RA4 flywheel is designed to use a 2.7t clutch kit.

Stage 2

• Heavy-duty daily clutch

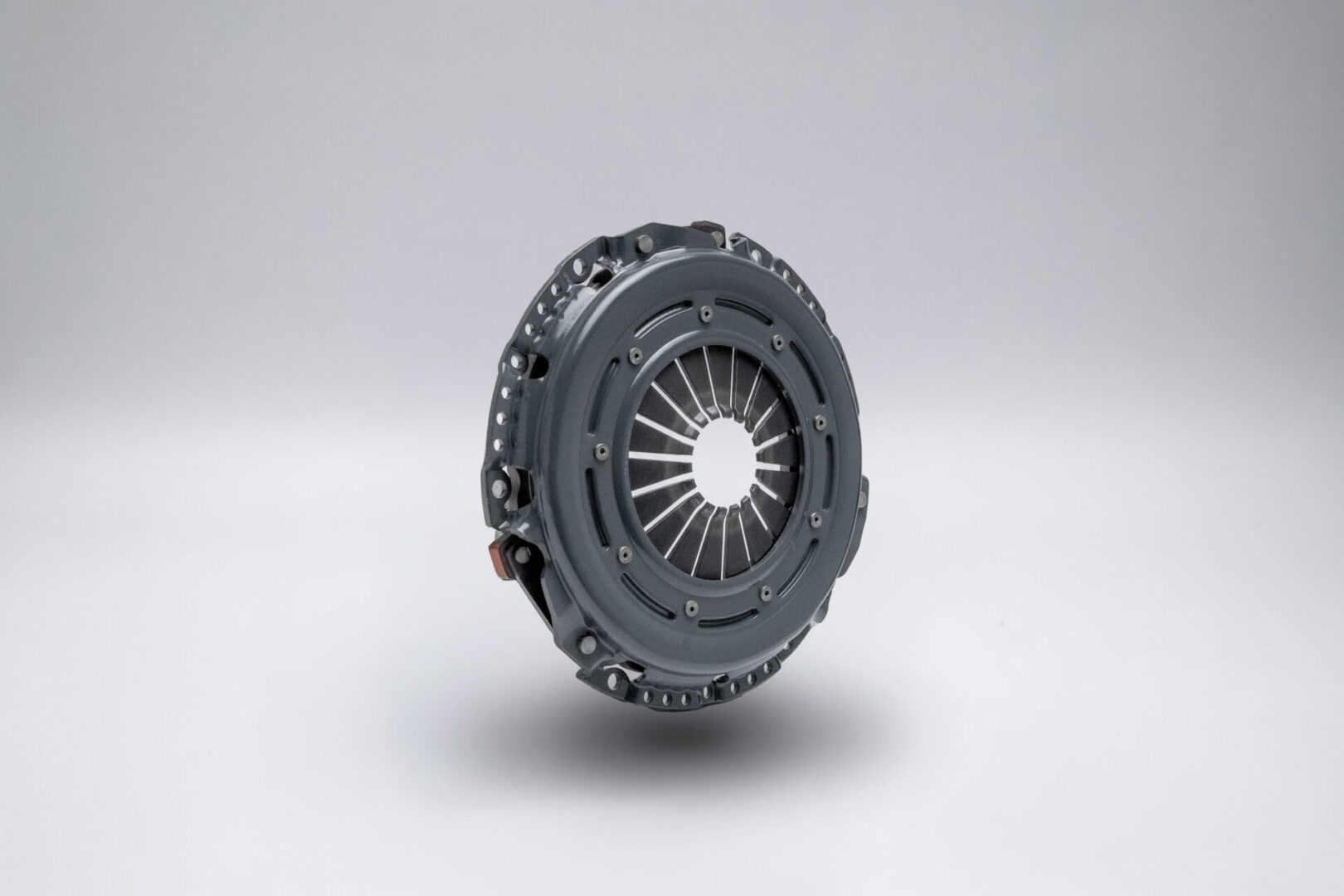

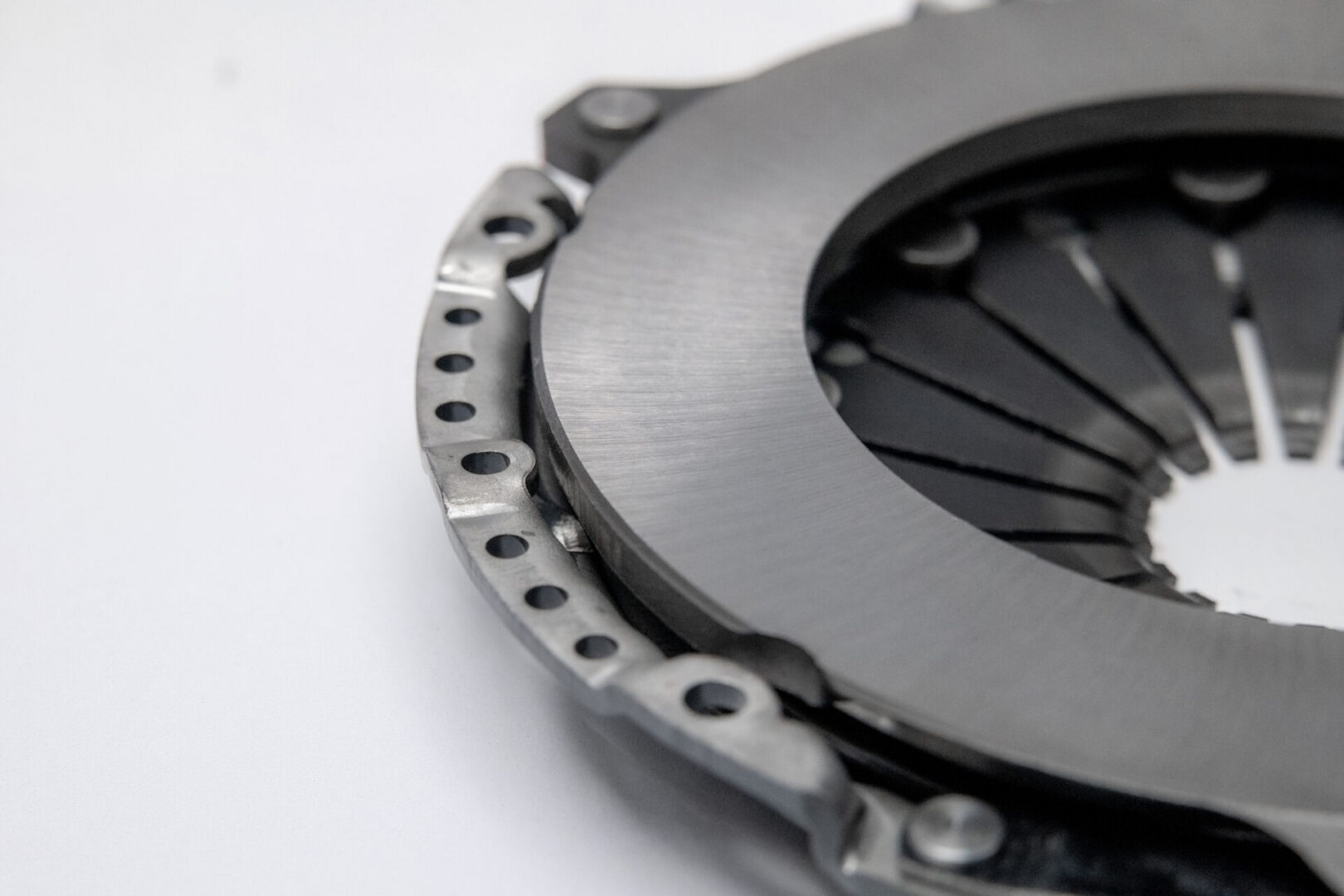

• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting

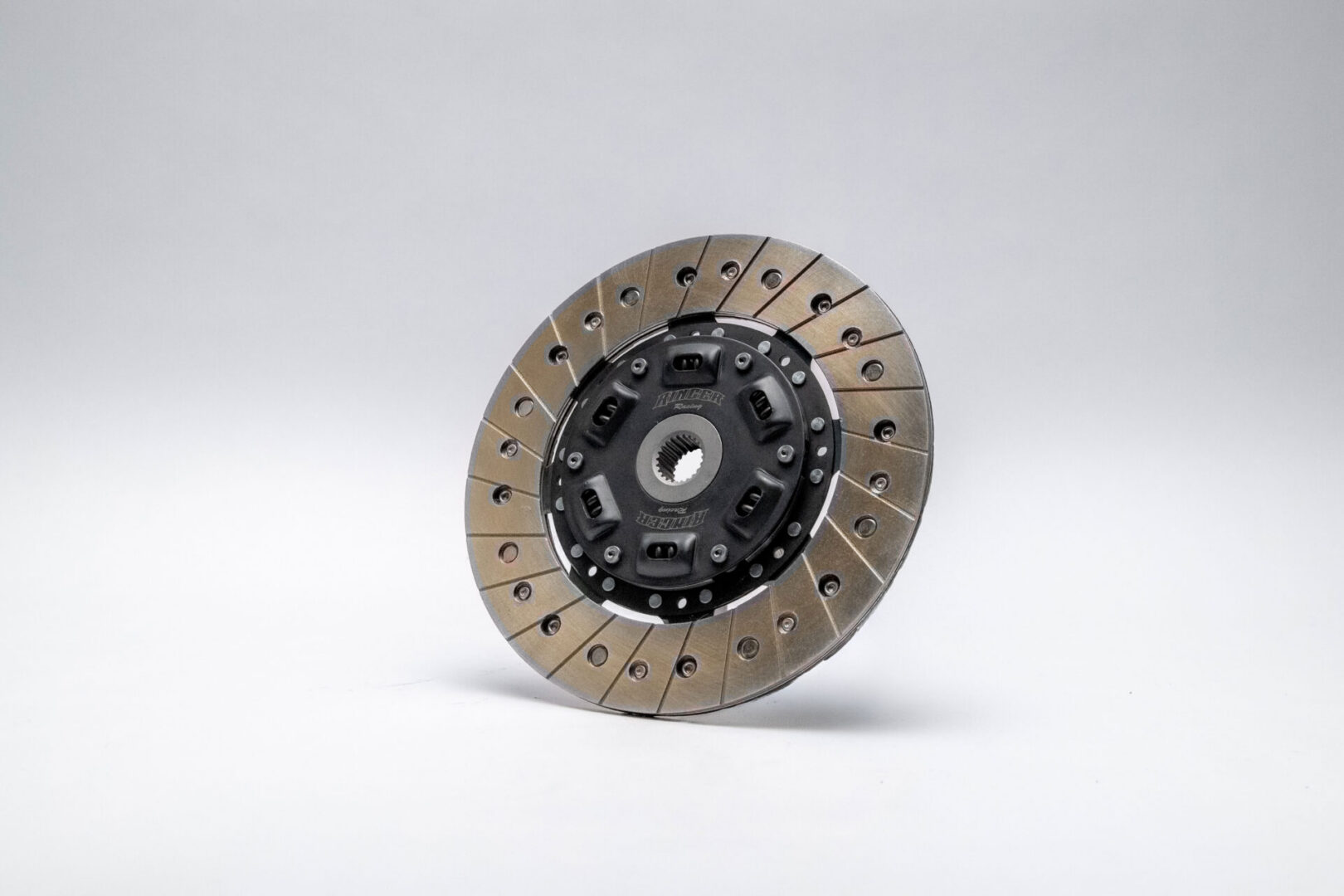

• Sprung hub/cushioned Steel backed disc
• Steel backed Organic Material



Stage 2+

• Heavy-duty dialy clutch
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic Material
• Slightly stiffer pedal then Stage 2



Stage 3

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• OEM Pedal feel

Stage 3+

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• Slightly stiffer pedal then Stage 3
• Note: Stage 3 disk with Stage 5 pressure plate

Stage 4

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• OEM Pedal feel

Stage 5

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• Slightly stiffer pedal then the Stage 4

Stage 5+

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• Slightly stiffer pedal then Stage 5



6 Puck Drag Clutch kit

Stage 5

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub 6-button iron disk
• Slightly stiffer pedal

Stage 5+

• Modified Stage 5 pressure plate for 8% more clamping load
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Sprung hub 6-button iron disk
• Slightly stiffer pedal then the stage 5



Torque Rating at the Flywheel

• Stage 3 – 585 ft lbs
• Stage 3+ – 700 ft lbs
• Stage 4 – 840 ft lbs
• Stage 5 – 925 ft lbs
• Stage 5+ – 1000 ft lbs



Options:

• Flywheel Resurfacing for those in the 48 lower states

Ringer Racing will provide a RMA to the customer, the customer will then ship their stock flywheel to the address provided with the RMA. The price of the Resurfacing option covers the resurfacing and shipping back to the customer along with the clutch order. Customer must check to make sure that the flywheel is in good enough shape to be reused. Once the resurfacing has been done there is no refunds for the resurfacing.*

**Includes ground shipping within the 48 States only. Option tab for orders outside the 48 States. For all other shipping options please contact us.
Now offering FedEx 2-day air shipping as a option for orders in the 48 states.
